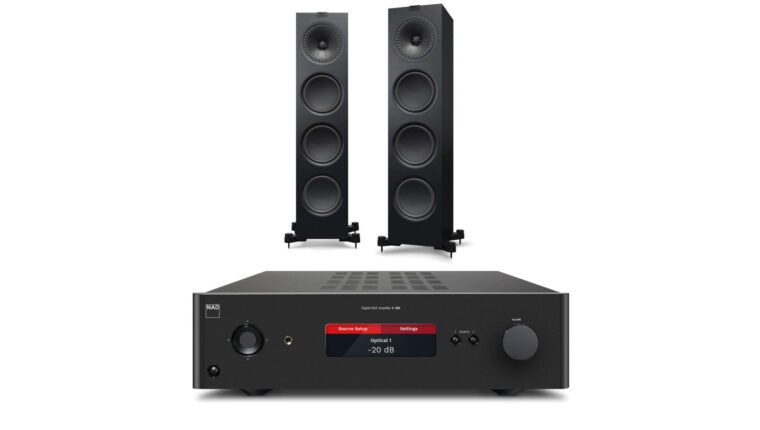

Hybrid Digital Stereo Amplifier NAD C 388

Hybrid Digital Stereo Amplifier NAD C 388

The NAD C 388 stereo amplifier uses a special Hypex UcD output stage operating in a balanced bridge configuration. This virtually eliminates various distortions and noise in the audible range. The highly efficient power supply can operate with AC voltage from 100 to 240V. And it guarantees to deliver up to 150 W per channel. And this with a nonlinear distortion coefficient of 0.02% — quite stable for various loads.

Hybrid Digital Stereo Amplifier NAD C 388

NAD C 388 Stereo Amplifier – Overview, Features



The NAD C 388 includes an MM phono stage that follows the RIAA curve with a high overload margin. Plus, it effectively suppresses infrasonic noise thanks to a well-designed Subsonic filter. The amplifier has two MDC expansion slots for connecting additional modules. Currently, the following modules are available for the NAD C 388:

  • MDC BluOS 2 Module. It adds Ethernet interface and supports Wi-Fi wireless connectivity for streaming playback. It includes support for music services Spotify Connect, Tidal, and TuneIn. The module can decode main digital audio formats (including MQA) up to 24bit/192kHz. Another nice feature is that the module can play audio files from a USB drive.
  • DD HDM-1 Module – adds three HDMI inputs (stereo, PCM 24bit/192kHz) and one output for pass-through video signal.
  • DD HDM-2 Module – similar to HDM-1 but supports 4K resolution.

Hybrid Digital Stereo Amplifier NAD C 388


Technical Specifications of the NAD C 388 Hybrid Stereo Amplifier



Channels 2
Output Power (4/8 Ohms) 150 W per channel

(20 kHz – 20 kHz, THD 0.02%)

Peak Power (4 Ohms) 350 W per channel
Class D
Signal-to-Noise Ratio 106 dB (line); 76 dB (MM)
Nonlinear Distortion Coefficient 0.005% (line, 2V); 0.01% (MM, 2V)
Damping Factor 150
Direct Mode Yes (Tone Bypass)
Adjustments Balance, Bass, Treble
Phono Stage MM
Line Inputs 2
Line Outputs
Preamp Output Yes
Subwoofer Output Yes (2)
Digital Inputs S/PDIF: optical (2), coaxial (2)
DAC ESS Sabre (dual balanced configuration)
Supported Digital Formats (S/PDIF) PCM 192 kHz / 24-bit
Additional Interfaces RS232, IR in, IR out, USB (service)
Wireless Connectivity Bluetooth (AptX), smartphone control
Remote Control Yes
Auto Power Off Yes
Power Cable Detachable
12V Trigger Input, output
Dimensions (W x D x H) 435 x 390 x 120 mm
Weight 11.2 kg


Hybrid Digital Stereo Amplifier NAD C 388

It’s a pity that there is no full-fledged DSP (Digital Signal Processor). After all, it is a digital amplifier, and it would be right to equip it with the appropriate functionality. For complete happiness, spatial effects when watching movies in high-quality sound are very much lacking. And if we are to find faults, then there is no DTS decoder. Of course, we do not have a 5.1 system, but movies with DTS audio codec cannot be watched without the MDC BluOS module.
